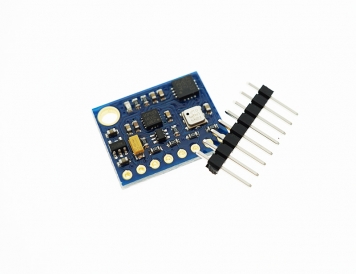

GY 89 10DOF L3GD20 LSM303D BMP180 Gyro Accelerometer Compass Altimeter For Arduino
10DOF modules (three-axis gyroscope + triaxial accelerometer + triaxial magnetic field + pressure)
Using Immersion Gold PCB process
Model: GY-89
Using a Chip: LSM303 + L3GD20 + BMP180
Power supply: 3-5v
Communication: IIC communication protocol (fully compatible with 3-5v system, including the LLC circuit)
Size: 2.2cm * 1.7cm
2.Dimensions: 22 mm × 17 mm.
3.Weight without header pins: 1 g.
4.Operating voltage: 2.5 V to 5.5 V.
5.Supply current: 8mA.
6.Output format (I2C/SPI).
7.Gyro: one 16-bit reading per axis.
8.Accelerometer: one 16-bit reading per axis.
9.Magnetometer: one 16-bit reading per axis.
10.Barometer: 24-bit pressure reading (I2C only).
11.Sensitivity range: Gyro: ±245, ±500, or ±2000°/s.
12.Accelerometer: ±2, ±4, ±6, ±8, or ±16 g.
13.Magnetometer: ±2, ±4, ±8, or ±12 gauss.
