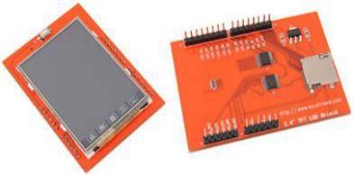

ZMXR 2.4 INCH TFT LCD SHIELD TOUCH PANEL MODULE TF SD FOR ARDUINO UNO R3
Código: 197121
Etiquetas: ZMXR, 2.4, INCH, TFT, LCD, SHIELD, TOUCH, PANEL, MODULE, TF, SD, FOR, ARDUINO, UNO, R3, ROBOTICA, DISPLAY
$ 9.990
Disponible sólo en tienda:
Mall Apumanque (3 unidades)
ZMXR 2.4 INCH TFT LCD SHIELD TOUCH PANEL MODULE TF SD FOR ARDUINO UNO R3
2.4#8243; diagonal LCD TFT display
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
7781 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the SD
5V compatible, use with 3.3V or 5V logic
Board Size:7.2×5.2cm/2.83#8243;*2.05#8243;(approx)
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
7781 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the SD
5V compatible, use with 3.3V or 5V logic
Board Size:7.2×5.2cm/2.83#8243;*2.05#8243;(approx)
